Purpose of use ?
It is designed to meet the need for a low-cost, safe-to-carry, simple-to-install, high-speed, point-to-point dark fiber connection and internet at headquarters.

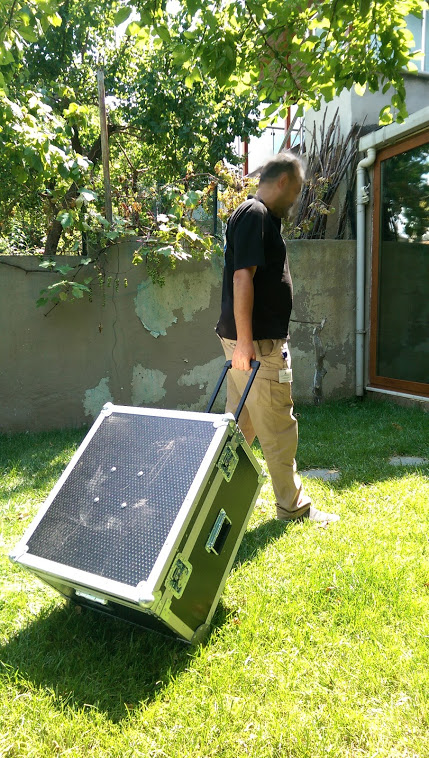

The system, which is placed in a wheeled and rickshaw crate suitable for transport in a cargo plane and container, is powered by mains electricity.
The system allows high-speed, encrypted data transmission of up to 30 MB and can be pinned to the site of my subject.
For who?
Military units; For the needs of encrypted, data, video and audio communications in advanced base areas.
Disaster units; To provide internet, radio, telephone and video transmission needs of the command and control centers in the disaster area.
Internal security units; for the purpose of providing any type of encrypted, broadband communication with the center of the units in the temporary base region.
TV stations; To be able to address the needs of broadcasting over the Internet or over the top of closed circuit VPLS circuits and meeting satellite phone communications needs.
FLYAWAY-4000_FAMİLY
Basic Features;
- Up to 50 Mb data connection
- Dark fiber, VPLS, MPLS and internet access

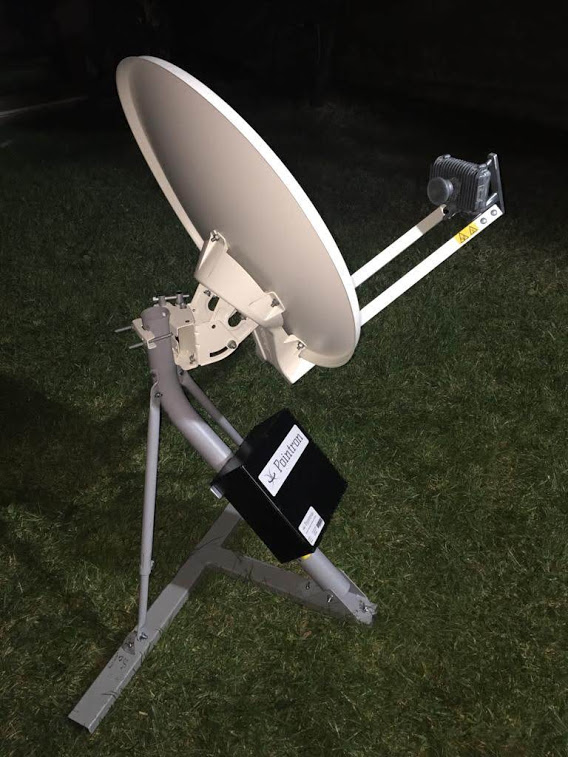

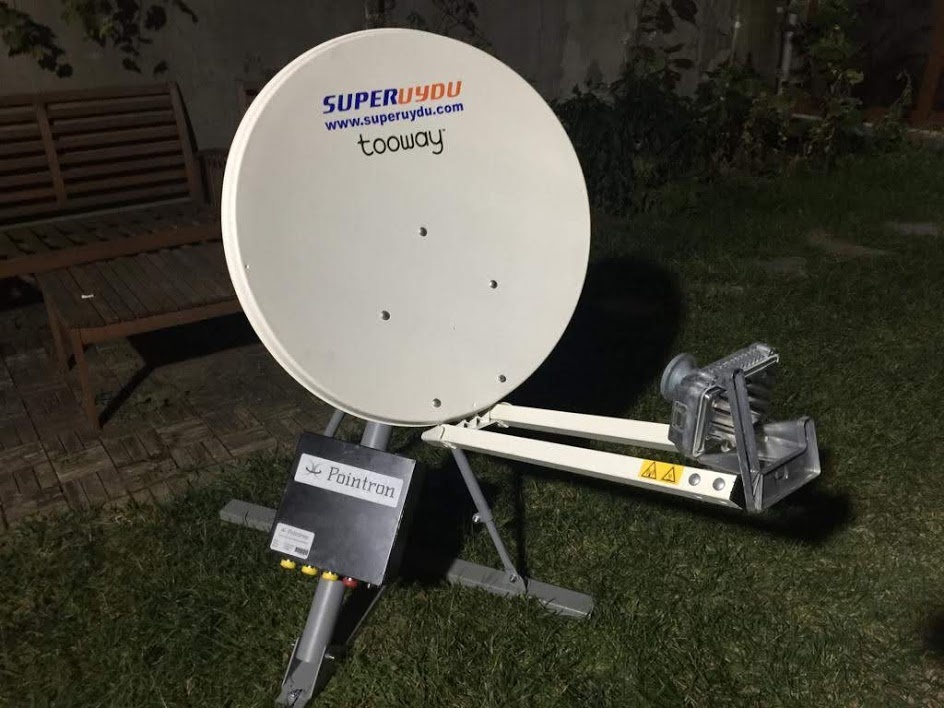

- KA band satellite access
- Possibility of wireless communication via satellite
- Telephone communication via satellite
- FullHD broadcast
- Wifi internet and network distribution capability
- Network distribution capability with X3 ethernet
- Operation with 220 V
- Simple interface
- Web-based management of the device wirelessly via wifi
** To take advantage of all the features of the device, you should choose the appropriate satellite operator infrastructures.
Physical Properties;
- Weight: 30 Kg (with carrying case)
- Operating temperatures: -10 C to 50 C
- Working environment: Outdoor
- Mains supply: 220 V power supply
- Transportation: in wheeled case
- Installation: fixed install
FLYAWAY-4000_FAMİLY
Functions;
- Dark fiber, MPLS and VPLS connection
- Internet connection,
- Network distribution over Ethernet
- Internet distribution via wifi
- It is carried in a wheeled safe.
- Transportable in cargo plane and container
- Suitable for outdoor environment.
Inputs and Outputs;
- Satellite cable connector
- 3x Ethernet output,
- Wifi access point,
- 220 V energy input,
** All connectors in the product are manufactured for outdoor environment, industrial type.
FLYAWAY-4000_FAMİLY
- The possibility of web-based management by connecting to mobile phone and computer via Wifi..
Technical specifications :
| Model | Flyaway 4000 | Flyaway 4100 |
| Internet | 30 Mbx 6 Mb | 30 Mbx 6 Mb |
| Dark fiber vpls | – | available |
| Battery | – | – |
| Screen | – | available |
| Transport type | Case | Case |
| WiFi | + | + |
| Ethernet | x1 | x3 |
| Power Switch | + | + |
| Power Lamp | + | + |
| Battery indicator | – | + |
| Fan | + | + |
| Military Connector | – | – |
| Civil Connector | + | + |
